Details

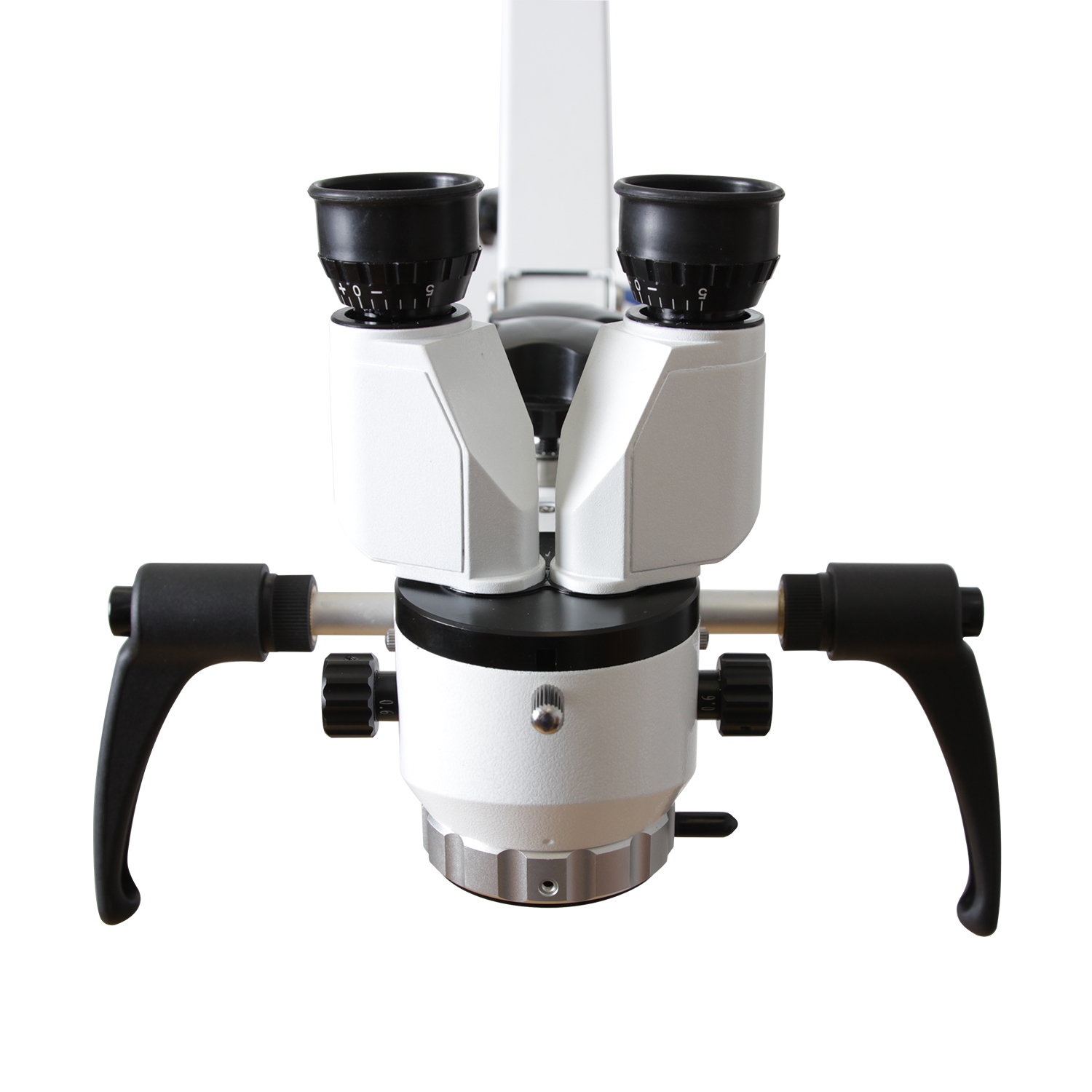

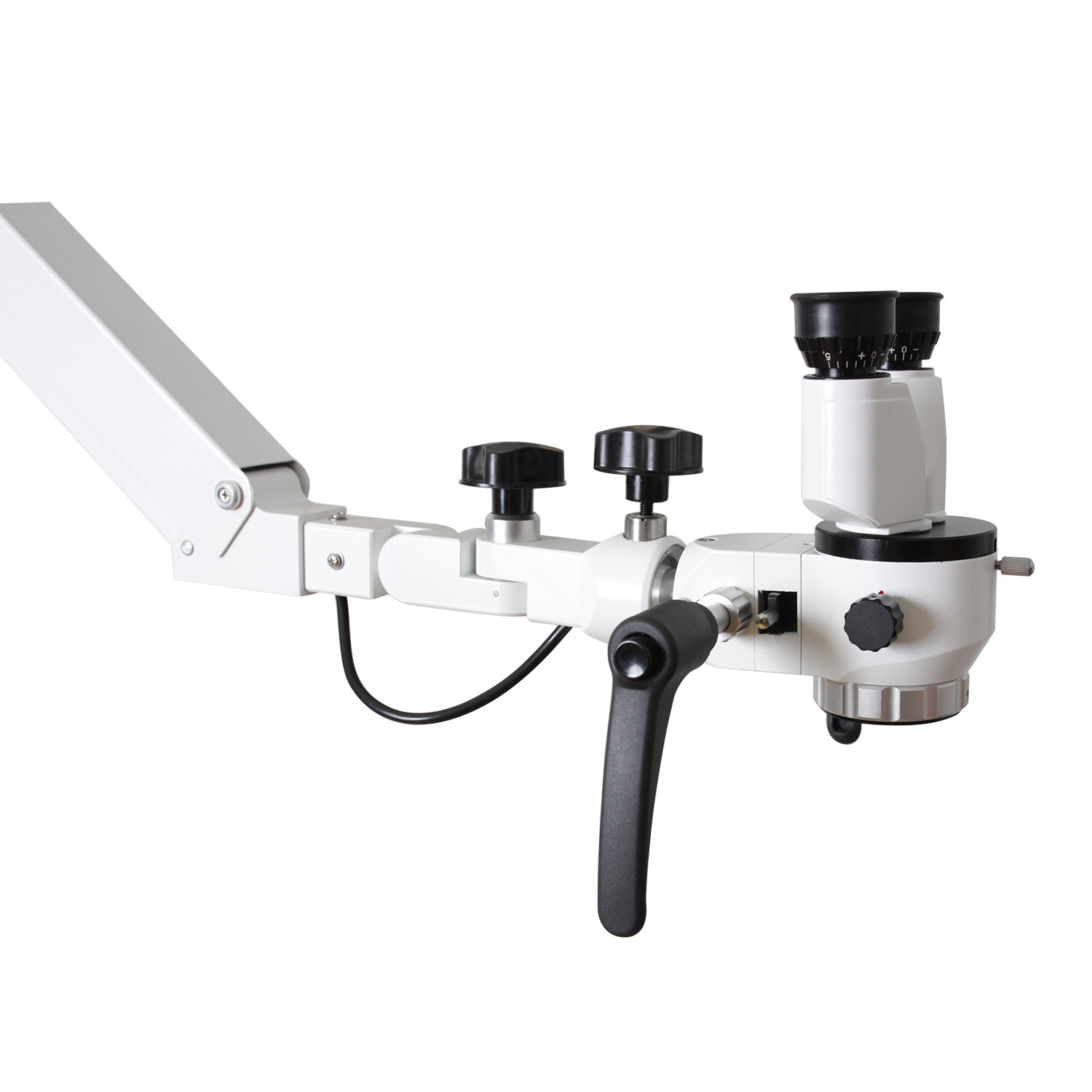

The DRE Compass 101 offers superb optical performance
The DRE Compass 101 is a high-performing ENT microscope that ensures clear and precise three-dimensional images. The Compass 101 is designed with an LED illumination source that guarantees a bright and long lasting light, and an excellent parfocal which provides more accurate results. Included is a superb 3-step magnification system that creates contrast and image depth for sharp images, as well as built-in colored filters for improved clarity.
The DRE Compass 101 is available new through DRE Vet. For more information, contact an DRE representative today.
Features
- Three step magnification system
- Built-in green and yellow filters
- Two-part column fitted on a five-star stand base
- Two-part arm for easy maneuvering
- 20,000 hours LED lifespan
- 50,000 LUX objective illumination
- Straight observation
Specifications
Dimensions
- Column height: 47.24 in max
- Arm length: 59 in max
- Arm height range: 23.62-61.02 in
Lens and Magnification
- 200/250mm objective lens
- 300/400mm objective lens (optional)
- Total magnification: 2.4X - 12X
- 10mm fine focusing range
- 3-step magnification change: 0.6X, 1X, 1.6X
Power
- 10W LED illumination system
- LED lifespan: 20,000 hours
- Power supply voltage: 90V/60HZ-250V/50HZ
